Slitter
Slitter for Film and Foil
This is one of our main models that has been ordered by many of our customers for its high-accurate slitting, applicable from copper, stainless steel, iron, and aluminum to other various alloys, offers universal specifications and excellent overall balance.
-

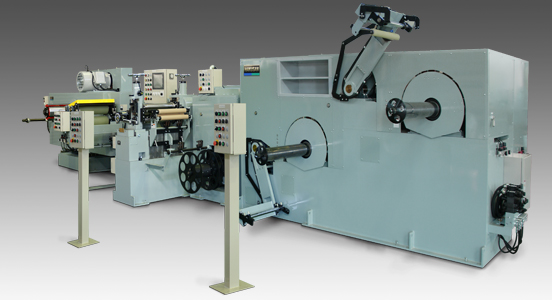

tight type
-
tight type
-

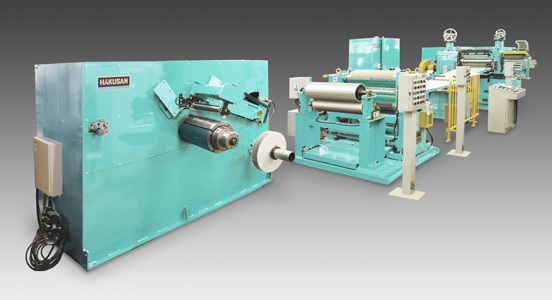

loop type
Features
The cutter shaft ensures μm-order accuracy.
Features automatic control for both electricity and hydraulic (pneumatic) pressure.
The tention and drive system are adjustable to the weight and legth of cutting material by the real-time monitoring system.
Selectable loop-less and compact design type which can be installed in a limited space with no pit is necessary.
Hakusan's original slip winding mechanism can absorb a sheet thickness deviation and ensure a good winding.
Hakusan's original dancing mechanism is loaded for scrap processing that would affect quality.
Applicable to special materials, such as plated materials.
Specifications
| Applicable to | iron, stainless steel, copper, alloys in general, and plated materials. |
|---|---|
| Minimum sheet thickness | 0.05mm |
| Maximum sheet width | 650mm |
| Minimum cut sheet width | 5mm |
